H.264, 4-CHANNEL ANALOG RECORD, 120/100 IPS NTSC/PAL, 250 GB TO 2 TB ONBOARD STORAGE

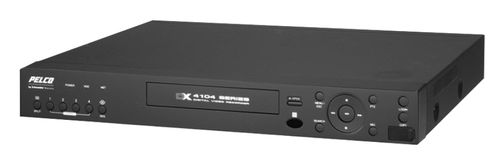

The DX4104 Series digital video recorder (DVR) is the next generation of an affordable entry-level DVR. The unit is designed for the entry-level market that requires one to four camera inputs, powerful video storage management with efficient H.264 compression, multi-event recording, quick and easy to use graphicaluser interface (GUI), internal storage capacity up to 2 TB, and remote client connectivity to as many as 100 DX4104 units. The DX4104 not only replaces the traditional VCR and multiplexer combination, it provides a solution that scales from stand-alone to networked.

Features:

H.264 compression
250 to 2000 GB of internal video storage
Optional DVD device
120/100 IPS at 352x240/352x288 NTSC/PAL
Up to 704 x 480/704 x 576 NTSC/PAL resolution
PTZ Control via Pelco D and Pelco P protocols
Multi-event recording mode
Channel independent resolution, quality, and frame rate settings
HDD Storage Manager for disk optimization
Continuous, motion, alarm, instant, and scheduled recording
Full-function femote agent with administration functions

Parameter Name	Parameter Value
Type	video digital
Applications	video surveillance
Other characteristics	DVR
